Product Portfolio
Precision-engineered copper solutions designed for the most
demanding industrial environments.
.
demanding industrial environments. .

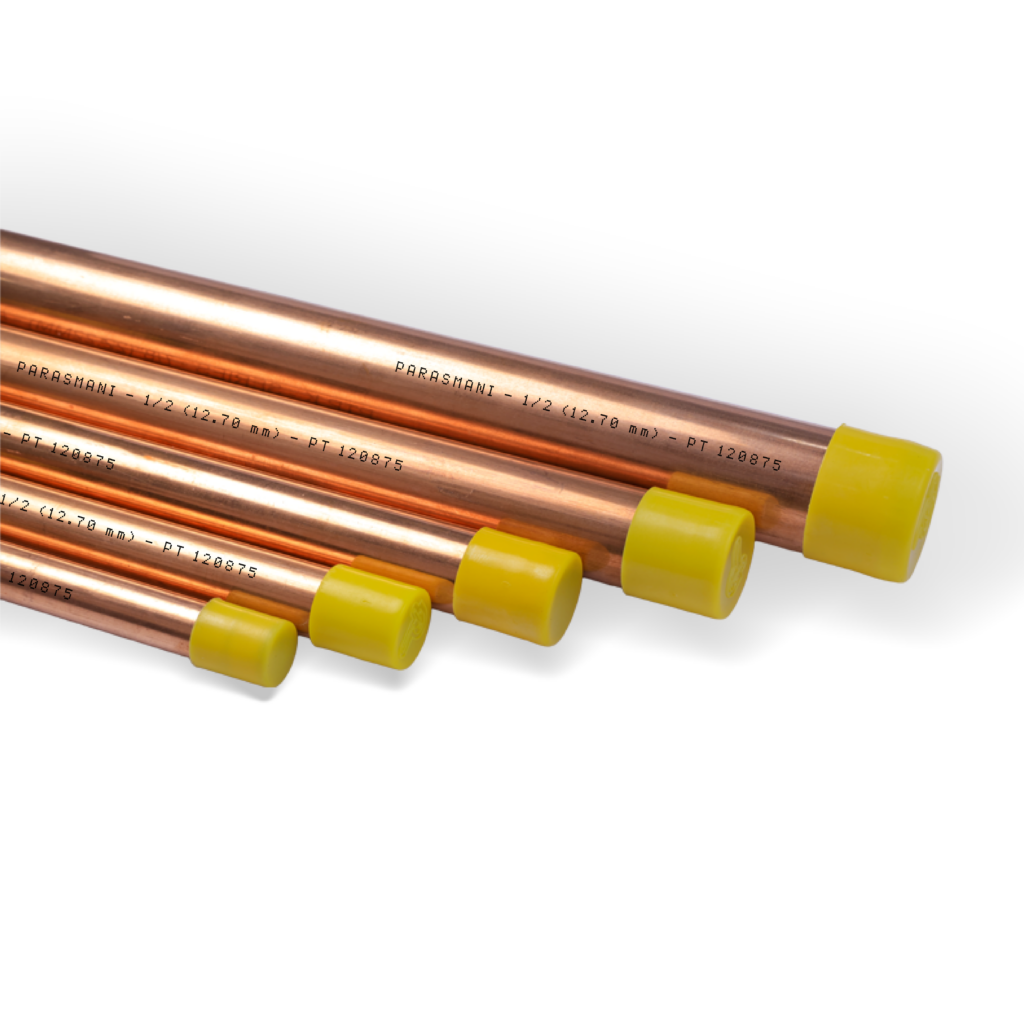

Straight Copper Tubes
Seamless straight-length copper tubes manufactured for HVAC/R, plumbing, medical gas, and industrial applications, offering high thermal conductivity, corrosion resistance, and reliable performance in demanding installations.
Our straight copper tubes are manufactured from C12200 (DHP) phosphorus deoxidized copper, ensuring exceptional thermal conductivity, corrosion resistance, and mechanical strength. These tubes are meticulously drawn and tested to meet stringent global standards including ASTM, JIS, and EN.
Specifications
Size Range
4.76 mm to 19.05 mm (OD)
Temper
Soft Annealed
Wall Thickness
0.45 mm to 1.21 mm
Coil Length
3000 mm to 16000 mm
Manufacturing Type
Seamless
Compliance & Standards
IS, ASTM, BS, EN, JIS
Primary Applications
HVAC and Air Conditioning
Medical Gas Pipeline Systems
Refrigeration
Fuel Gas Systems
Plumbing Applications
Industrial Process Piping
Other Specialized Applications
"Engineered to withstand high burst pressures and extreme temperature variations, ensuring leak-proof operations in critical circuits."
Engineering Insights
Technical Engineering Data
Chemical & Mechanical Properties
| Standard | Copper Alloy No. / Grade | Cu% | P% | Temper | Tensile Strength (MPa) | Hardness |
|---|---|---|---|---|---|---|
| JIS H3300 | C12200 | 99.90% Min. | 0.015 – 0.040% | Half Hard | 245 – 325 | 70 – 110 VPN |
| Hard | 315 Min. | 100 VPN Min | ||||
| ASTM B280 | C12200 | 99.90% Min. | 0.015 – 0.040% | Hard (H58) | 250 Min. | NA |
Dimensional Tolerances
Our manufacturing process ensures strict adherence to dimensional tolerances as per ASTM B280 and JIS H3300.
- ✔ Wall thickness tolerances are maintained within +/- 10% of the nominal thickness.
- ✔ Outer diameter tolerances range from 0.04mm to 0.13mm depending on the tube size.
Pressure Rating & Brust Calculations
Barlow's Formula
Theoretical bursting pressure is calculated based on the Barlow formula.
Internal Pressure (PSI)
Allowable Stress (PSI)
Wall Thickness (Inches)
Outside Diameter (Inches)
Standards Compliance
ASTM B280
Air Conditioning & Refrigeration
EN 13348
Medical Gases and Vacuum
ASTM B88
Seamless Copper Water Tube
JIS H3300
Copper & Copper Alloy Seamless Pipes

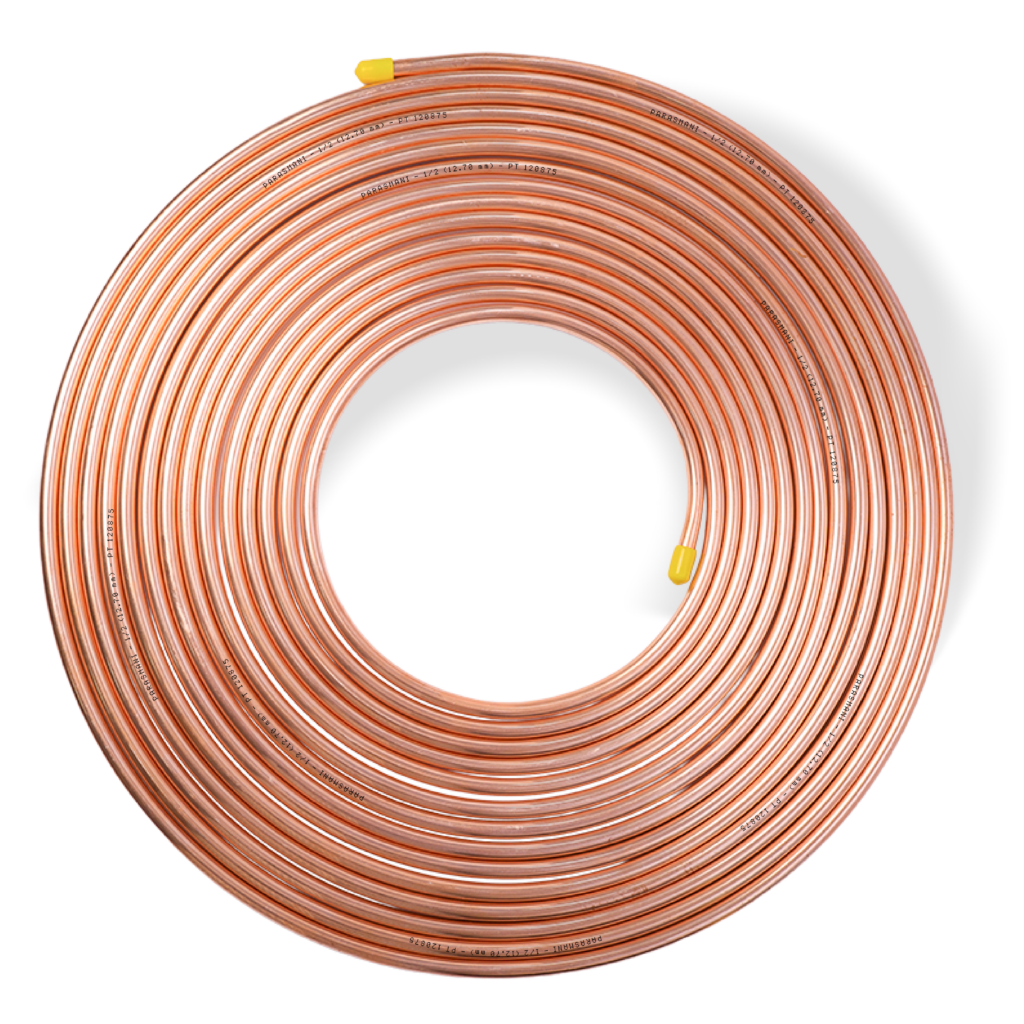

Pancake Copper Coils
Seamless copper tubes supplied in pancake coil form, specially manufactured for HVAC/R, plumbing, medical gas, and refrigeration applications, ensuring excellent formability, high thermal conductivity, and ease of installation.
Pancake copper coils are specially manufactured from C12200 (DHP) phosphorus deoxidized copper and annealed to provide maximum flexibility and ease of installation on-site. The soft temper allows for seamless bending around obstacles without the need for additional fittings, significantly reducing the risk of leaks in refrigeration circuits.
Specifications
Size Range
4.76 mm to 19.05 mm (OD)
Temper
Soft Annealed
Wall Thickness
0.45 mm to 1.21 mm
Coil Length
3000 mm to 16000 mm
Manufacturing Type
Seamless
Compliance & Standards
IS, ASTM, BS, EN, JIS
Primary Applications
HVAC and Air Conditioning
Refrigeration
Fuel Gas Systems
Industrial Process Piping
Other Specialized Applications
"Engineered to withstand high burst pressures and extreme temperature variations, ensuring leak-proof operations in critical circuits."
Engineering Insights
Technical Engineering Data
Chemical & Mechanical Properties
| Standard | Copper Alloy No. / Grade | Cu% | P% | Temper | Tensile Strength (MPa) | Elongation % (Min) | Avg Grain Size (mm) | Hardness | Internal Bore Cleanliness |
|---|---|---|---|---|---|---|---|---|---|
| JIS H3300 | C12200 | 99.90% Min. | 0.015 – 0.040% | Soft Annealed (O) | 205 Min. | 40 | 0.025 – 0.060 | 60 VPN Max | NA |
| ASTM B68 | C12200 | 99.90% Min. | 0.015 – 0.040% | Soft Annealed (O60) | 210 Min. | 40 | 0.040 Min. | NA | NA |
| ASTM B280 | C12200 | 99.90% Min. | 0.015 – 0.040% | Soft Annealed (O60) | 205 Min. | 40 | 0.040 Min. | NA | 0.038 g/m² Max. |
| IS 10773:1995 | Grade 2 | 99.85% Min. | 0.015 – 0.040% | Soft Annealed | 205 Min. | 40 | 0.035 Min. | NA | NA |
Dimensional Tolerances
Our manufacturing process ensures strict adherence to dimensional tolerances as per ASTM B280 and JIS H3300.
- ✔ Wall thickness tolerances are maintained within +/- 10% of the nominal thickness.
- ✔ Outer diameter tolerances range from 0.04mm to 0.13mm depending on the tube size.
Pressure Rating & Brust Calculations
Barlow's Formula
Theoretical bursting pressure is calculated based on the Barlow formula.
Internal Pressure (PSI)
Allowable Stress (PSI)
Wall Thickness (Inches)
Outside Diameter (Inches)
Standards Compliance
ASTM B280
Air Conditioning & Refrigeration
EN 13348
Medical Gases and Vacuum
ASTM B88
Seamless Copper Water Tube
JIS H3300
Copper & Copper Alloy Seamless Pipes

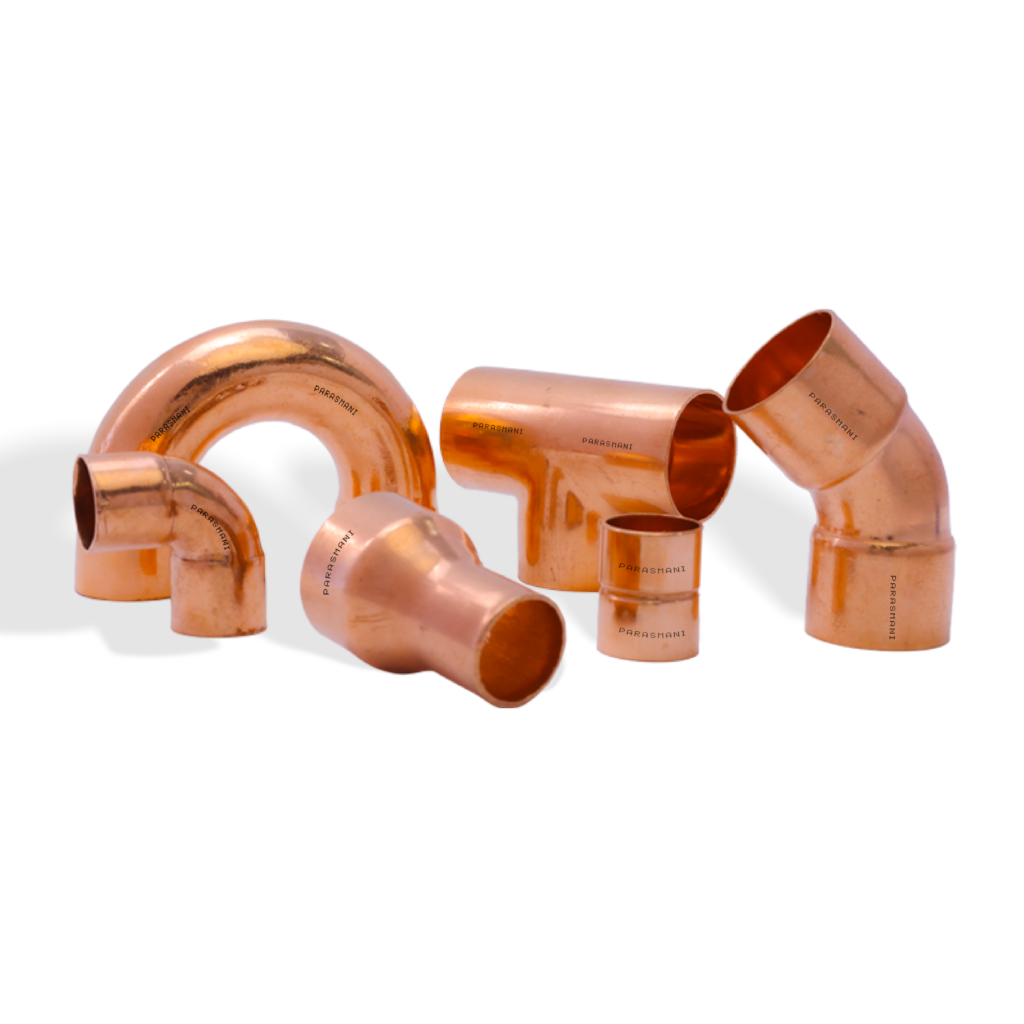

Copper Fittings
Precision-engineered copper fittings designed for secure and reliable piping connections.
Our comprehensive range of copper fittings is manufactured from C12200 (DHP) phosphorus deoxidized copper and designed to complement our tube offerings, ensuring a perfectly matched, leak-free system. Manufactured with tight dimensional tolerances, these fittings provide excellent capillary action for optimal brazing and soldering joints.
Specifications
Types
Elbow, 45° Elbow, Long Elbow, Coupling, Reducer, Tee, U Bend, End Cap, and more
Size Range
6 mm to 130 mm (ID)
Wall Thickness
0.70 mm to 3.30 mm
Manufacturing Type
Seamless / Precision Formed
Compliance & Standards
IS, ASTM, BS, EN, JIS
